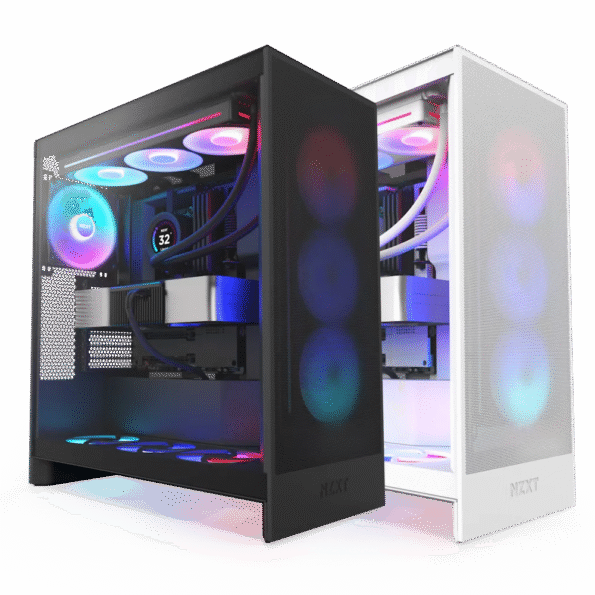

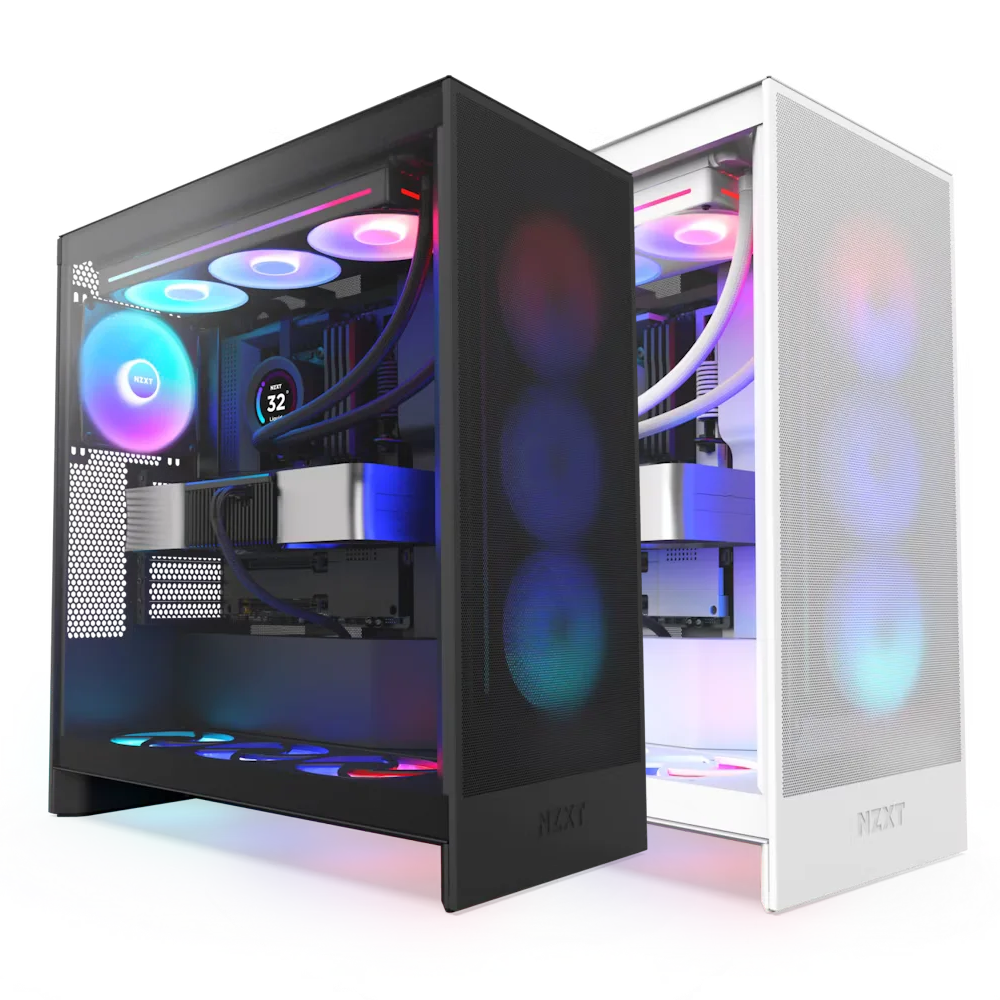

NZXT H7 Flow RGB New Gaming Case

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• NZXT H7 Flow RGB White Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
• https://barakacomputer.net/product-category/computer-cases/nzxt/

• Dedicated GPU Cooling

  Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
• https://nzxt.com/product/h7-flow-rgb?srsltid=AfmBOor7-QvX7RT6hQSGQRBq1HOgUMApisOPacmbSPEjJIfTDWtE7tW8
• http://Out-of-the-Box Performance Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

• Key Specs

  Motherboard Support

  E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX

  Enclosure Type

  Mid-Tower

  Case Material

  SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

  Dimensions

  Height (With Feet)

  544 mm

  Width

  244 mm

  Depth

  468 mm

  Weight

  11.13 kg

  Compatibility & Clearance

  CPU Cooler Height

  Up to 185mm

  GPU Length

  Up to 410 mm

  PSU Length

  Up to 200 mm

  Cable Management

  Up to 34.5 mm

  Top Mounted Radiator & Fan Combined Thickness

  Up to 57 mm (140mm / 280mm)

  Front I/O Ports

  USB 3.2 Gen 1 Type-A

  2

  USB 3.2 Gen 2×2 Type-C (20 Gbps)

  1

  Headset Audio Jack

  1

  Expansion Slots

  Standard

  7

  Vertical

  0

  Drive Bays

  2.5″

  2+2

  3.5″

  2

  Fan Support

  Front

  3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)

  Top

  3 x 120 mm / 2 x 140 mm

  Bottom

  3 x 120 mm

  Rear

  1 x 120 mm / 1 x 140 mm

  Filters

  High-Performance Mesh

  Radiator Support

  Front

  Up to 420 mm

  Top

  Up to 360mm

  Rear

  Up to 140mm

  Fan Specs – F360 RGB Core (Case Version)

  Model

  F360 RGB Core Fan (Case Version)

  Speed

  1,700 ± 200 RPM

  Airflow

  50.1 CFM

  Static

  1.27 mm-H₂O

  Noise

  23.3 dBA

  Fan Connector

  3-pin DC
