X870 GAMING X WIFI7 RYZEN MOTHERBOARD

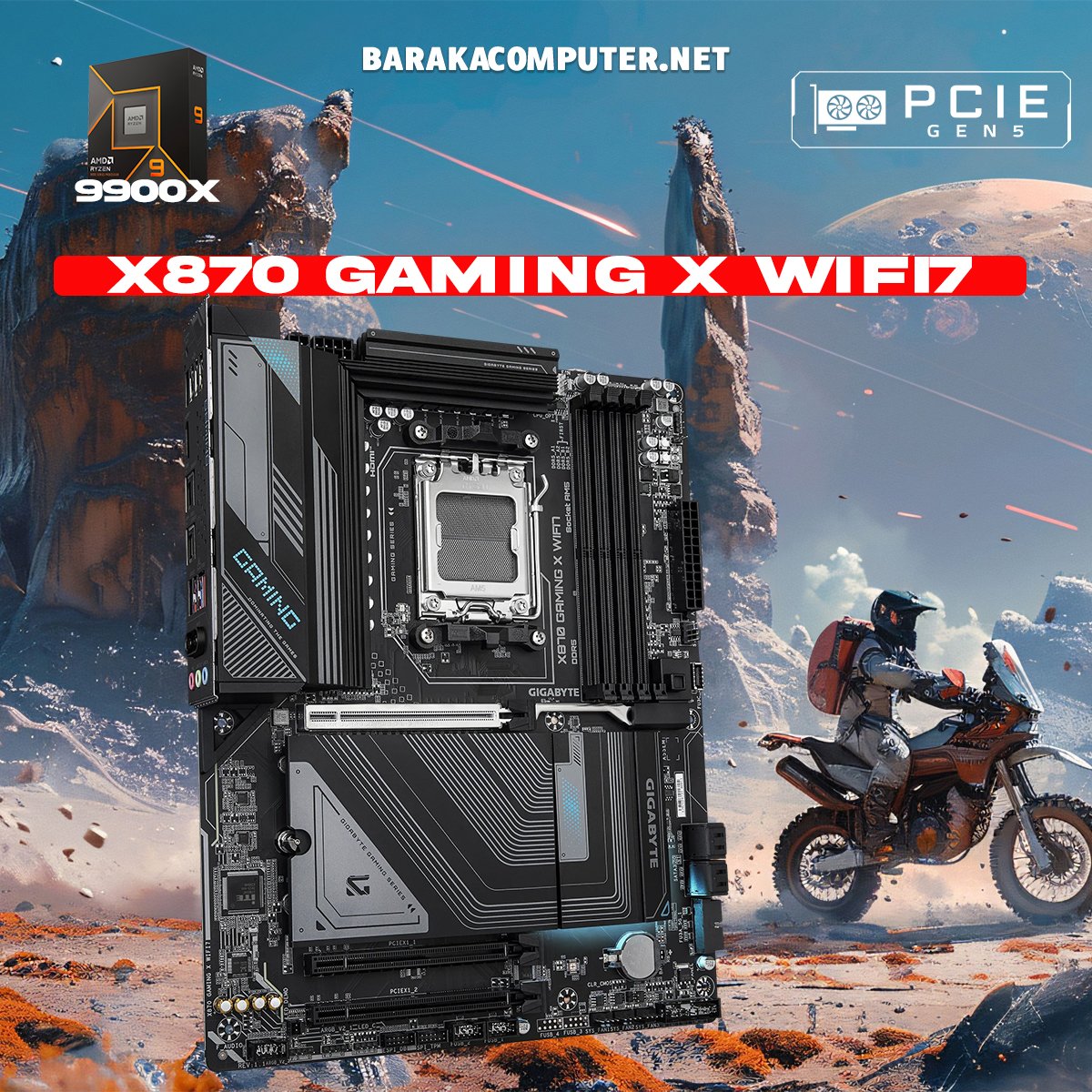

GIGABYTE X870 GAMING X WIFI7 Ryzen Motherboard: Redefine Your Gaming Experience

Elevate your gaming rig to unprecedented heights with the GIGABYTE X870 GAMING X WIFI7 motherboard. This ATX powerhouse is meticulously engineered. It’s designed to unleash the full, unbridled potential of AMD’s latest Ryzen 7000, 8000, and the groundbreaking 9000 Series processors. With a precise focus on robust power delivery, efficient cooling, and next-generation connectivity, the X870 GAMING X is the ultimate platform for dedicated gamers, aspiring content creators, and PC enthusiasts who demand a competitive edge and unwavering reliability.

Built for Ryzen’s Might: AM5 Platform Optimization

The X870 GAMING X features the AMD AM5 socket. This ensures immediate and comprehensive compatibility with all current and future AMD Ryzen processors.

This includes the formidable Ryzen 9 9950X and upcoming Zen architecture CPUs. It enables you to harness unparalleled multi-core and single-core performance. GIGABYTE’s meticulous design ensures optimal communication and power delivery to these advanced CPUs. This guarantees rock-solid stability and maximum throughput for any demanding application.

The X870 chipset is the backbone of this platform. It provides a robust foundation for modern components and high-speed data transfer.

Robust Power Delivery: Digital Twin 12+2+2 Phases VRM

At the very core of the X870 GAMING X‘s power lies its potent Digital Twin 12+2+2 Phases VRM Solution. This robust power design incorporates high-current Smart Power Stage (SPS) MOSFETs. These are typically rated at 70A or higher per phase. This is alongside premium chokes and high-quality capacitors.

This substantial power stage capacity ensures that even demanding Ryzen processors receive an incredibly stable, clean, and consistent power supply. This applies under intense gaming sessions or moderate overclocking conditions.

This stability is crucial for maximizing sustained boost clocks. It enhances overclocking headroom. And it maintains system stability for both the CPU and high-speed DDR5 memory. The X870 GAMING X ensures reliable, consistent performance.

The all-digital PWM controller, combined with these premium components, results in superior power conversion efficiency. This translates to less wasted energy and lower heat generation within the VRM components. It also means an extended lifespan for your motherboard, even under continuous heavy loads.

DDR5 Memory: High-Speed and Stable Performance

Experience the definitive future of memory with the X870 GAMING X‘s comprehensive DDR5 support. This motherboard features four Dual Channel DDR5 DIMM sockets. They are capable of supporting an impressive 256GB of RAM.

It offers an extensive range of DDR5 speeds. Validated overclocked frequencies typically reach 7600 MT/s and beyond. This ensures rapid data access for gaming and productivity.

The X870 GAMING X seamlessly integrates AMD EXPO™ profiles (for AMD-optimized kits) and Intel® XMP (for universal kits). This allows for one-click optimization of your high-speed RAM.

GIGABYTE’s proprietary DDR5 Circuit Design and advanced DDR5 Auto Booster technologies further enhance memory overclocking performance and capability. This ensures optimal stability and blistering speed for your Ryzen processor.

Shielded Memory Routing & 6-Layer PCB: Advanced shielding within the PCB keeps memory signals clean and interference-free. The 6-layer PCB, featuring 2oz thickened copper, minimizes signal loss. This provides fast DDR5 data transmission and superior stability for high-frequency memory. This meticulous engineering is a hallmark of the X870 GAMING X.

PCIe 5.0 and 4.0: Graphics and Storage Unleashed

The X870 GAMING X provides excellent bandwidth for both graphics and storage, leveraging the capabilities of the X870 chipset.

Full PCIe 5.0 x16 Slot with PCIe EZ-Latch: The primary PCIe x16 slot is engineered to accommodate the most demanding graphics cards. It operates at full PCIe 5.0 x16 speeds. This ensures unparalleled bandwidth for the latest generation of GPUs. This provides maximum performance for gaming, professional rendering, and AI acceleration applications.

PCIe EZ-Latch: The innovative EZ-Latch design simplifies the installation and removal of your graphics card. This makes PC building, upgrading, and maintenance a significantly more user-friendly and hassle-free experience on the X870 GAMING X.

Multiple PCIe 5.0 and PCIe 4.0 M.2 Storage Slots: Experience the definitive future of storage with the X870 GAMING X‘s robust M.2 configuration. It typically features at least one PCIe 5.0 x4 M.2 connector directly from the CPU. One or more additional PCIe 4.0 x4 M.2 slots are also included. This allows for extensive high-speed storage expansion.

Blistering Speeds: PCIe 5.0 NVMe SSDs deliver sequential read and write speeds that are double that of PCIe 4.0. This translates into near-instantaneous operating system boot times. It means virtually zero-latency game loading. And it dramatically reduces file transfer times for even the most colossal datasets. Imagine launching your entire game library in the blink of an eye. Or opening massive 8K creative projects in mere seconds.

M.2 Thermal Guard / AORUS Thermal Solutions: Each M.2 slot is equipped with advanced heatsinks. These include the M.2 Thermal Guard. They are designed to proactively prevent thermal throttling of your high-speed NVMe SSDs. This ensures your drives maintain their peak performance even under heavy workloads. It eliminates performance degradation due to heat.

Hyper-Speed Connectivity: WIFI 7 and High-Bandwidth I/O

The X870 GAMING X redefines connectivity. It ensures you are always at the forefront of network and peripheral performance.

Integrated Wi-Fi 7 (802.11be) Module: Step into the future of wireless networking with the integrated Wi-Fi 7 module. This revolutionary standard offers unprecedented advancements over Wi-Fi 6E.

Multi-Link Operation (MLO): MLO allows simultaneous data transmission across multiple frequency bands (2.4GHz, 5GHz, and 6GHz). This aggregation of bandwidth dramatically boosts speeds. It reduces latency and significantly enhances reliability. This is crucial for competitive online gaming and demanding wireless applications like VR.

Blazing Multi-Gigabit Speeds: Wi-Fi 7 delivers theoretical maximum speeds reaching well over 5.8Gbps. This ensures lightning-fast downloads, seamless 4K/8K streaming, and rapid file transfers across your network.

Enhanced Capacity and Efficiency: Optimized for multi-device environments, Wi-Fi 7 offers superior network capacity and efficiency. This ensures smooth performance even with numerous connected devices simultaneously engaging in bandwidth-intensive activities.

Blazing Fast 2.5GbE LAN: For those who demand the utmost reliability and speed from a wired connection, the X870 GAMING X integrates a high-performance 2.5 Gigabit Ethernet (2.5GbE LAN) port. This provides a 2.5x bandwidth increase over standard Gigabit Ethernet. It’s ideal for competitive online gaming where every millisecond counts. It’s also great for rapid local network file transfers and high-fidelity media streaming without bottlenecks.

Comprehensive USB 3.2 Gen 2 (10Gbps) and Gen 1 (5Gbps) Connectivity: The motherboard provides a generous array of USB 3.2 Gen 2 (10Gbps) Type-A and Type-C ports, and multiple USB 3.2 Gen 1 (5Gbps) Type-A ports. These are available both on the rear I/O and as internal headers for front panel connectivity. This ensures you have ample, high-bandwidth ports for all your modern peripherals, VR headsets, and external storage devices.

Efficient Thermal Design: Stay Cool Under Pressure

Sustained, high-octane performance from a powerful motherboard like the X870 GAMING X is unattainable without an effective and intelligently designed heat dissipation system. The GAMING X is engineered with a comprehensive thermal design. It’s meticulously crafted to ensure your system remains cool, stable, and performing optimally. This applies even during the most demanding, prolonged tasks and intense gaming marathons.

Extended MOSFET Heatsinks: The X870 GAMING X features extended heatsinks that directly contact the Voltage Regulator Modules (VRMs). These critical components generate substantial heat under load. The expansive surface area of these heatsinks efficiently dissipates this heat across a wider area. This prevents thermal throttling of the VRMs and ensures consistent, stable power delivery.

High Thermal Conductivity Pads: Strategically placed high-quality thermal pads ensure efficient heat transfer from the MOSFETs and other critical components to the heatsinks. These pads bridge any microscopic gaps, ensuring optimal thermal contact and superior heat dissipation.

Smart Fan 6 with Multi-Zone Temperature Sensors and FAN STOP: GIGABYTE’s next-generation Smart Fan 6 control system provides unparalleled and intelligent thermal management. It incorporates an expanded array of multiple, highly accurate temperature sensors. They are strategically placed across the motherboard. This allows for precise, real-time monitoring of every critical component.

The motherboard also features numerous hybrid fan headers. They intelligently support both PWM and DC fans. They also support high-power water cooling pumps (with robust 24W capacity). The advanced FAN STOP feature allows individual fans to completely cease operation below a user-defined temperature threshold. This enables truly silent computing during light workloads. The intuitive and enhanced Smart Fan 6 BIOS UI provides granular, graphical control over fan curves. It empowers users to create highly customized and optimized cooling profiles for every conceivable scenario for their X870 GAMING X system.

6-Layer PCB with 2oz Thickened Copper: The multi-layered Printed Circuit Board (PCB) design features a 6-layer construction with 2oz thickened copper. This acts as an efficient heat dissipation pathway. This superior PCB construction helps to draw heat away from critical components across the entire board. It contributes significantly to the motherboard’s overall thermal management, rock-solid stability, and exceptional long-term durability.

Enhanced User Experience and Reliable Durability: The GIGABYTE Ultra Durable™ Philosophy

The X870 GAMING X embodies GIGABYTE’s renowned Ultra Durable™ philosophy. This is a commitment to long-term reliability, robust construction, and an intuitive, user-centric design. It defines a reliable and enjoyable PC experience.

High-Quality Audio: Experience clear audio with the integrated 8-channel HD audio solution. This ensures an immersive soundscape for your games, movies, and music. Enjoy rich and detailed sound that brings your entertainment to life.

Q-Flash Plus for Effortless BIOS Updates: An indispensable feature for builders and upgraders, Q-Flash Plus allows you to update the motherboard’s BIOS with unparalleled ease. No CPU, memory, or even a graphics card is necessary. Simply download the latest BIOS, place it on a USB drive, and activate the Q-Flash Plus button. This feature is invaluable for ensuring immediate compatibility with newer processors. It’s also great for effortlessly troubleshooting potential boot issues.

RGB FUSION: Express your style and create a captivating visual experience with GIGABYTE’s RGB FUSION lighting system. The X870 GAMING X includes RGB LED headers. This allows you to connect and synchronize RGB lighting across compatible components. Create stunning, dynamic lighting effects and personalize your build.

Ultra Durable™ Construction: Every single aspect of the X870 GAMING X is meticulously engineered and constructed. This is done with an unwavering commitment to quality, reliability, and extreme durability. From the robust 6-layer PCB to the reinforced PCIe slot and the fortified DDR5 DIMM sockets, the motherboard is designed to withstand the rigorous demands of high-performance computing, frequent component changes, and long-term operation. This meticulous attention to detail ensures a rock-solid and highly reliable foundation for your PC for many years to come.

Technical Specifications Summary:

• CPU Support: AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors
• Chipset: AMD X870
• VRM: Digital Twin 12+2+2 Phases VRM Solution (with 70A+ SPS MOSFETs)
• Memory: 4 x DIMM slots, Dual Channel DDR5, Max. 256GB, supports DDR5 up to 7600+MHz (OC) with AMD EXPO™ and XMP
• PCIe Slots:
  • 1 x PCIe 5.0 x16 slot (from CPU, with PCIe EZ-Latch)
  • Additional PCIe 4.0/3.0 slots for expansion
• M.2 Storage:
  • At least 1 x PCIe 5.0 x4 M.2 connector (from CPU)
  • 1 or more x PCIe 4.0 x4 M.2 slots
  • Equipped with M.2 Thermal Guard heatsinks
• SATA Storage: 4 x SATA 6Gb/s connectors
• Networking:
  • Integrated Wi-Fi 7 (802.11be) Module
  • Realtek 2.5GbE LAN
  • Bluetooth 5.3
• USB Ports:
  • Rear Panel: Multiple USB 3.2 Gen 2 (10Gbps) Type-A/C, USB 3.2 Gen 1 (5Gbps) Type-A, USB 2.0/1.1
  • Internal Headers: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0/1.1
• Audio: High-Quality HD Audio CODEC, 8-Channel HD Audio
• BIOS: 256 Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup, Intuitive UI
• Form Factor: ATX
• Thermal Features: Extended MOSFET Heatsinks, High Thermal Conductivity Pads, Smart Fan 6 with Multi-Zone Temperature Sensors and FAN STOP, 6-Layer PCB with 2oz Thickened Copper
• DIY Features: PCIe EZ-Latch, M.2 EZ-Latch, Q-Flash Plus, RGB FUSION headers

Benefits of Choosing the X870 GAMING X:

Optimized Gaming Performance: The X870 GAMING X provides a solid foundation for a high-performance gaming rig. Its robust power delivery ensures your CPU performs optimally. PCIe 5.0 unlocks maximum performance from the latest GPUs and NVMe SSDs. Wi-Fi 7 and 2.5GbE LAN guarantee minimal latency for online gaming, giving you a crucial competitive edge.

Efficient Content Creation: For aspiring creators, this motherboard offers reliable performance for demanding tasks. High-speed DDR5 memory and multiple PCIe 5.0/4.0 M.2 slots significantly accelerate large file operations, rendering, and complex computations, boosting your productivity.

Future-Ready Platform: The X870 GAMING X is built on the cutting-edge AM5 platform. This ensures compatibility with future generations of AMD Ryzen processors. Its extensive support for PCIe 5.0 for graphics and storage, along with DDR5 memory and Wi-Fi 7, ensures your system remains relevant for years to come.

Reliable Stability: Thanks to its robust VRM, efficient thermal design, and GIGABYTE’s Ultra Durable™ components, the X870 GAMING X offers unwavering stability. This translates to fewer crashes, consistent performance under load, and a longer lifespan for your entire system.

Simplified Building Experience: Features like Q-Flash Plus and EZ-Latch simplify the building and upgrading process. This makes it accessible even for novice builders. The intuitive BIOS and comprehensive RGB FUSION controls allow for easy system configuration and personalization.

The GIGABYTE X870 GAMING X WIFI7 motherboard is more than just a component; it’s a commitment to performance. It’s the definitive choice for anyone seeking to build a high-performance AMD Ryzen system. This system excels in every aspect, providing a reliable and powerful core for your gaming and computing needs.
