NZXT H9 FLOW RGB NEW 2025

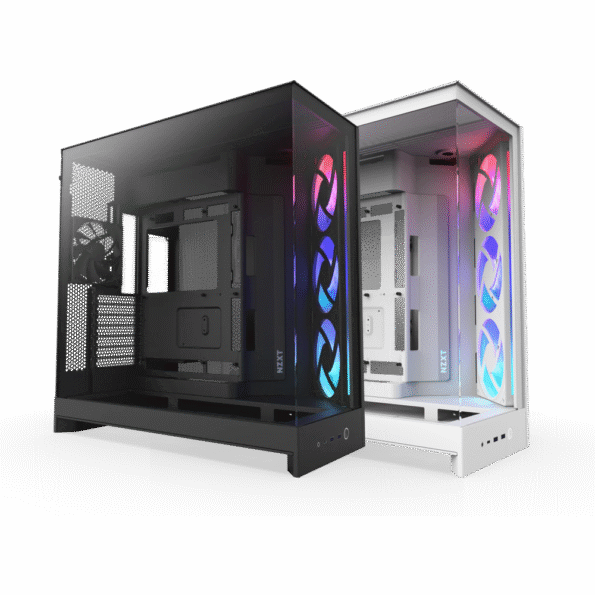

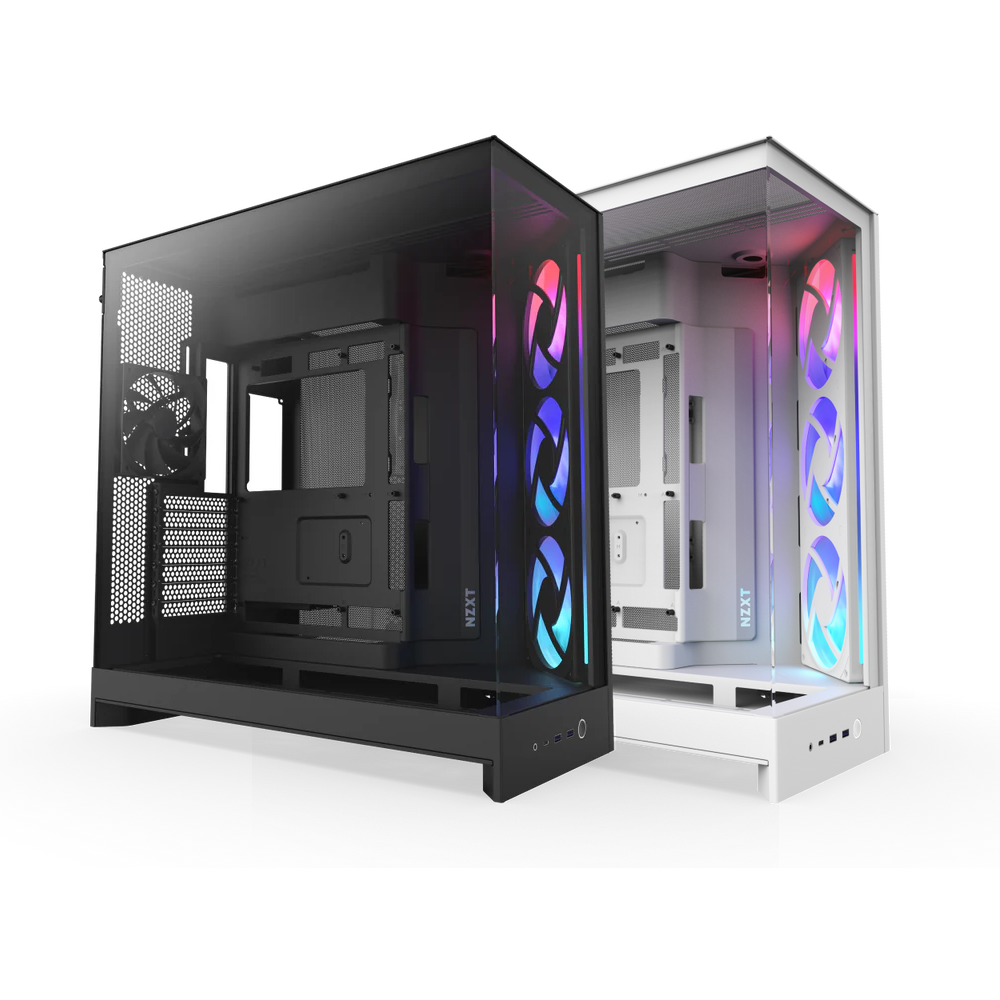

The NZXT H9 FLOW RGB NEW 2025

For the discerning PC enthusiast, the pursuit of perfection extends beyond raw processing power; it encompasses a harmonious blend of cutting-edge performance, optimal thermal management, and captivating visual design. The NZXT H9 FLOW RGB NEW 2025 is engineered precisely for this pursuit. This isn’t just a PC case; it’s a meticulously crafted environment designed to maximize airflow, brilliantly showcase your high-end components, and offer an effortlessly streamlined building experience. As the definitive evolution of NZXT’s acclaimed H9 series, the 2025 RGB model redefines what’s possible in a modern PC chassis.

NZXT has long stood at the forefront of PC hardware innovation, consistently delivering products that marry minimalist aesthetics with practical functionality. The NZXT H9 FLOW RGB embodies this philosophy, taking the panoramic tempered glass design to new heights while prioritizing aggressive, unhindered airflow. Whether you’re a hardcore gamer pushing frames, a professional content creator demanding stability, or an enthusiast seeking to build a showpiece, the NZXT H9 FLOW provides the ultimate stage. In its stunning white finish, this case offers a pristine canvas for your powerful hardware and vibrant RGB lighting, ensuring your build is as visually breathtaking as it is performant.

Technical Mastery: Unpacking the Engineering Brilliance of the NZXT H9 FLOW RGB NEW 2025

The NZXT H9 FLOW RGB NEW 2025 is a testament to sophisticated engineering, leveraging its innovative dual-chamber layout and intelligent design to deliver unparalleled thermal performance and exquisite aesthetics.

1. The Signature Panoramic Dual-Chamber Design:

The defining characteristic of the NZXT H9 FLOW series is its revolutionary dual-chamber layout, which sets it apart from conventional PC cases.

• Unobstructed Main Chamber: The front and left-side panels are crafted from seamless tempered glass, providing an utterly uninterrupted, panoramic view of your most critical and visually appealing components: the motherboard, CPU cooler, graphics card, and primary cooling solutions. This creates a clean, showroom-quality aesthetic.
• Discreet Rear Chamber: The second, larger chamber is ingeniously designed to house components traditionally known for clutter: the Power Supply Unit (PSU), storage drives (both 2.5″ SSDs and 3.5″ HDDs), and, crucially, all your cable management. This separation ensures the main display area remains pristine and maximizes airflow by removing obstructions.
• Optimized Dimensions: With external dimensions measuring approximately 506 mm (Height) x 315 mm (Width) x 481 mm (Depth), and a substantial internal volume of 76.7 Liters, the NZXT H9 FLOW offers an expansive interior capable of housing the largest enthusiast-grade hardware without an unnecessarily bulky footprint on your desk.
• Premium Materials: The case is constructed from high-quality SGCC steel for structural integrity, complemented by the elegant, seamless tempered glass panels. The “FLOW” variant features perforated steel on key airflow surfaces, ensuring optimal thermal performance.

2. Aggressive Airflow Optimization (The “FLOW” Advantage):

The “FLOW” in NZXT H9 FLOW is not merely a branding; it signifies a core commitment to superior thermal management through intelligent airflow design.

• Strategic Perforated Panels: Unlike the solid glass of its “Elite” counterpart, the NZXT H9 FLOW (2025) integrates finely perforated steel mesh panels on the top, bottom, and, critically, the unique front-right side. These high-airflow panels are designed to maximize cool air intake and hot air exhaust while simultaneously acting as effective dust filters.
• Angled Front-Right Fan Mounting: A key innovation derived from NZXT’s successful H6 Flow, the NZXT H9 FLOW RGB+ (2025) features an angled front-right fan bracket. This strategic placement ensures that fresh, cool air is directly funneled towards your graphics card and other heat-intensive components, which is paramount for maintaining optimal temperatures during demanding gaming sessions or intensive workloads.
• Comprehensive Pre-installed RGB Core Fans: The RGB+ model comes exceptionally well-equipped right out of the box, offering both immediate cooling capabilities and stunning, customizable illumination:
  • 2 x F420 RGB Core Fans: These are powerful 140mm fans (designed to be mounted in 140mm fan slots but can also be adapted to 120mm mounts) strategically positioned at the front-right and bottom intakes. They deliver high airflow (up to 98.61 CFM) and excellent static pressure (up to 3.2 mmH2O) at speeds up to 2000 RPM, making them ideal for pushing air through mesh panels or radiators.
  • 1 x F120 RGB Core Fan: A versatile 120mm RGB fan positioned at the rear for efficient exhaust (up to 55.17 CFM airflow, 1.27 mmH2O static pressure, 1300 RPM).
  • NZXT Control Hub (V2): An included, updated NZXT Control Hub provides centralized management for both fan speeds (PWM) and Addressable RGB (ARGB) lighting. This allows for seamless control and synchronization of all connected NZXT RGB devices via the intuitive NZXT CAM software, simplifying the lighting and cooling configuration process.
• Expansive Fan Capacity: Beyond the included fans, the NZXT H9 FLOW RGB (2025) offers exceptional flexibility for additional cooling:
  • Front-Right: Up to 3 x 120mm or 3 x 140mm fans.
  • Top: Up to 3 x 120mm or 3 x 140mm fans.
  • Bottom: Up to 3 x 120mm or 3 x 140mm fans.
  • Rear: 1 x 120mm fan.
  • This allows for a potential total of up to 10 fans, enabling builders to create highly optimized positive or negative pressure airflow configurations for extreme cooling scenarios.

3. Unparalleled Radiator Support for Liquid Cooling Enthusiasts:

The NZXT H9 FLOW RGB NEW 2025 is a true haven for builders who favor liquid cooling, accommodating even the largest All-In-One (AIO) coolers and custom water-cooling loops.

• Versatile Radiator Compatibility:
  • Front-Right: Supports radiators up to 420mm.
  • Top: Supports radiators up to 420mm.
  • Bottom: Supports radiators up to 360mm.
  • Rear: Supports a 120mm radiator.
• Dedicated Fill Port (for Custom Loops): A thoughtful, integrated fill port discreetly located under the top panel simplifies the filling and maintenance of custom liquid cooling loops, a small but significant detail for advanced builders.
• Ample Clearance: The case provides generous clearance for both radiator thickness and fan profiles, including up to 80mm at the top (ideal for 360mm radiators) and 62mm (for 420mm radiators) with fans. This ensures compatibility with even the thickest and most performant cooling solutions available.

4. Extensive Component Clearance and Broad Compatibility:

The NZXT H9 FLOW RGB (2025) is engineered to house the latest and most demanding PC hardware without compromise.

• Graphics Card Length: Offers an impressive 459mm of clearance for graphics cards (when thin fans are used on the front-right). Even with a thick 56mm 420mm AIO and fans at the front-right, it still provides 410mm of GPU clearance. This accommodates virtually all modern, oversized GPUs, including upcoming RTX 50-series and RX 8000-series behemoths.
• CPU Cooler Height: Provides 165mm of clearance for large air coolers, ensuring compatibility with most high-performance tower coolers from brands like Noctua and be quiet!.
• PSU Length: Accommodates ATX power supplies up to 200mm in length, allowing for powerful, high-wattage units without compromising space in the rear chamber.
• Motherboard Compatibility: Supports a wide array of motherboard form factors, including E-ATX (up to 277mm wide), ATX, Micro-ATX, and Mini-ITX, offering broad flexibility for your core system.
• Back-Connect Motherboard Ready (2025 Update): The 2025 revision of the NZXT H9 FLOW RGB is specifically designed with dedicated cutouts and routing paths to be fully compatible with emerging rear-connecting motherboards (e.g., ASUS BTF, MSI Project Zero). This enables an exceptionally clean, virtually cable-free aesthetic in the main viewing chamber.

5. Smart Storage and Connectivity Solutions:

• Flexible Drive Bays: Features versatile storage options, including 4+2 x 2.5″ SSD mounts and 2 x 3.5″ HDD mounts. All drive mounts are strategically located in the discreet rear chamber, keeping them hidden from view and maintaining the clean aesthetic of the main compartment.
• Modern Front I/O Panel: Conveniently located at the bottom edge of the case for easy accessibility, the front I/O includes 2 x USB 3.2 Type-A ports, 1 x USB 3.2 Gen2x2 Type-C port (delivering lightning-fast data transfer speeds of up to 20 Gbps for ultra-fast external storage devices), and a combined headset audio jack.

6. Unmatched Builder-Friendly Features:

NZXT’s commitment to a seamless and enjoyable building experience is evident in every detail of the NZXT H9 FLOW RGB.

• Effortless Cable Management: The deep, wide channels (up to 91mm of space behind the motherboard tray), numerous tie-down points, and pre-installed Velcro straps make routing even the most complex cable arrays remarkably simple. The hinged side panel provides easy access to the rear chamber.
• Tool-less Access: The main tempered glass panels (front and side) offer tool-less removal, simplifying installation, upgrades, and routine maintenance.
• Dust Filtration: Equipped with easily removable nylon mesh dust filters at the bottom (for the PSU intake) to protect your components from dust accumulation. The finely perforated mesh panels themselves offer substantial inherent dust filtration for other intake areas, ensuring optimal airflow and system longevity.

Benefits of Use: Why Invest in the NZXT H9 FLOW RGB NEW 2025?

Choosing the NZXT H9 FLOW RGB NEW 2025 offers a wealth of advantages that profoundly enhance both your PC building journey and your daily computing experience.

• Showcase Your Masterpiece: The most immediate and striking benefit is the completely unobstructed, panoramic view of your PC components. The seamless tempered glass design allows you to proudly display your high-end GPU, CPU cooler, RAM, and custom lighting, transforming your PC into a captivating, gallery-worthy art piece. The pristine white finish provides an elegant, clean backdrop for your vibrant RGB, making colors truly pop.
• Unrivaled Thermal Performance: The “FLOW” moniker is a promise delivered. The optimized airflow pathways, including the angled front-right fans and extensive perforated panels, ensure your components receive ample cool air. This leads to significantly lower operating temperatures, preventing thermal throttling, extending component lifespan, and allowing your CPU and GPU to maintain higher boost clocks for longer, directly translating to smoother gameplay and faster rendering.
• Future-Proof Design & Longevity: With immense support for massive GPUs, multiple 420mm radiators, E-ATX motherboards, and cutting-edge compatibility with upcoming back-connect motherboard designs, the NZXT H9 FLOW RGB (2025) is built for the long haul. It provides a robust, adaptable, and relevant platform for your future hardware upgrades, safeguarding your investment for many generations of PC components.
• Simplified, Enjoyable Building Experience: NZXT’s meticulous design prioritizes the builder. The dual-chamber layout, generous cable management solutions (including pre-installed Velcro straps and wide routing channels), and tool-less access panels make installation a breeze, even for complex custom loops. Routine maintenance, such as cleaning dust filters or swapping components, is also exceptionally easy.
• Exceptional Cable Management: The dedicated rear chamber and comprehensive cable routing features enable you to achieve a remarkably clean and organized build. No more unsightly tangles of wires detracting from your meticulously chosen components. This not only looks superior but also subtly contributes to improved internal airflow.
• Integrated & Customizable RGB Brilliance: The included F420 RGB Core fans and F120 RGB Core fan, combined with the powerful NZXT Control Hub and intuitive NZXT CAM software, provide vibrant, customizable lighting right out of the box. This seamless integration allows for easy synchronization and creation of dynamic lighting effects across your system, making your build uniquely yours.
• Optimized Acoustics: With highly efficient cooling thanks to optimized airflow, fans often don’t need to spin at their maximum RPMs. The high-quality NZXT F-Series fans are also acoustically optimized for quiet operation, contributing to a more enjoyable and less distracting computing environment during both intense gaming and casual use.
• Robust and Durable Construction: Crafted from high-quality SGCC steel and robust tempered glass, the NZXT H9 FLOW RGB (2025) is built to endure. Its solid construction protects your valuable internal components and ensures the case itself remains a cornerstone of your setup for years to come.
• Versatile Cooling Ecosystem: Whether you prefer massive air coolers, convenient All-In-One (AIO) liquid coolers, or intricate custom hard-tube liquid cooling loops, the NZXT H9 FLOW provides the space, mounting points, and dedicated features to accommodate virtually any cooling strategy, giving you ultimate flexibility in your build.
• Premium Aesthetic Statement: The sleek white finish, combined with the panoramic glass and vibrant RGB, makes the NZXT H9 FLOW RGB (2025) a true showstopper. It’s designed for enthusiasts who want their PC to be a focal point, reflecting their passion for high-end hardware and clean, elegant design.

The Ultimate Foundation for Your 2025 Build and Beyond

The NZXT H9 FLOW RGB NEW 2025 represents the pinnacle of modern PC chassis design, perfectly balancing aggressive high-performance cooling with breathtaking aesthetics. Its innovative dual-chamber layout, highly optimized airflow capabilities, and intelligent builder-friendly features make it an unparalleled choice for anyone looking to construct a powerful, visually stunning, and future-proof system.

Whether you’re pushing the limits in gaming, rendering complex creative projects, or simply admiring your meticulously crafted machine, the NZXT H9 FLOW RGB provides the ideal environment. It’s more than just a case; it’s the ultimate stage upon which your computing dreams come to life, allowing your hardware to truly shine. Invest in the NZXT H9 FLOW RGB (2025) and experience the ultimate blend of form and function for years to come.
