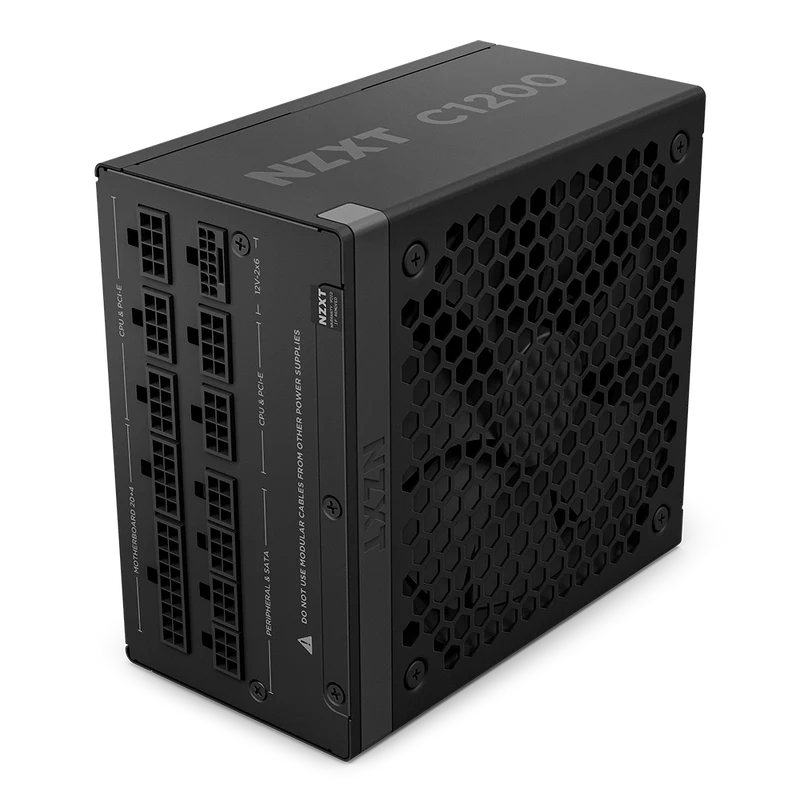

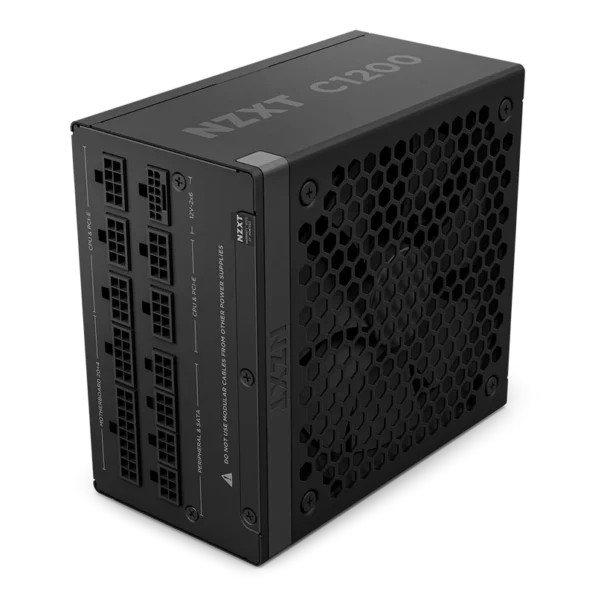

NZXT C1200 Gold ATX 3.1Fully Modular

The Cornerstone of Modern PC Power: The NZXT C1200 Gold ATX 3.1 Power Supply

In the world of high-performance computing, the power supply unit (PSU) is more than just a box that delivers electricity. It is the very foundation of your system, a silent guardian that ensures stability, efficiency, and the long-term health of every component.

As GPUs and CPUs push the boundaries of power consumption, a new standard for power delivery has emerged. The NZXT C1200 Gold ATX 3.1 power supply is not just another PSU; it is a meticulously engineered solution built to meet the demands of today and the challenges of tomorrow.

With a massive 1200W capacity, this PSU provides an immense reservoir of clean, stable power, ready to fuel the most power-hungry configurations, including top-tier GPUs like the NVIDIA GeForce RTX 4090.

What sets the NZXT C1200 apart is its forward-thinking design, built to the latest ATX 3.1 standard and featuring a native 12V-2×6 connector. This critical inclusion eliminates the need for bulky adapters and addresses the very real concerns of connector reliability that have plagued previous generations of high-wattage graphics cards.

The fully modular design of the NZXT C1200 provides unparalleled flexibility for builders, allowing you to connect only the cables you need, which simplifies cable management and dramatically improves airflow inside your case.

Complemented by its 80 PLUS Gold certification for superior efficiency and an ultra-quiet fluid dynamic bearing fan with a Zero RPM mode, this PSU embodies the perfect synergy of power, performance, and silence.

In this comprehensive guide, we will delve into the technical mastery and tangible benefits that make the NZXT C1200 the ultimate choice for your next-generation PC build, proving that this is a smart, secure, and long-term investment in your system’s longevity and stability.

Unlocking Unprecedented Stability: A Deep Dive into the NZXT C1200

The true measure of a power supply lies not just in its total wattage, but in the quality and reliability of the power it delivers. The NZXT C1200 is built on a foundation of premium components and advanced design principles, ensuring it provides a consistent and robust electrical signal to all of your hardware.

ATX 3.1 and the 12V-2×6 Connector: The New Standard

The most significant feature of the NZXT C1200 is its compliance with the Intel ATX 3.1 standard. This is a crucial evolution over the previous ATX 3.0, and it directly addresses the challenges presented by modern, high-power GPUs.

The core of this standard is the new 12V-2×6 connector, which replaces the older 12VHPWR connector. The 12V-2×6 connector features a refined design with longer power pins and shorter sideband pins. This seemingly minor change has a major impact: it ensures the power connection is fully seated before the GPU can draw its full power, effectively preventing the overheating and melting issues that were associated with partially inserted cables.

The NZXT C1200 comes with a single, high-quality native 12V-2×6 cable that can deliver up to 600W to a single graphics card. This means you can power even the most demanding flagship GPUs without using a multi-cable adapter, resulting in a cleaner, more reliable, and aesthetically pleasing build.

The PSU is also rated to handle transient power spikes of up to 200% of its rated wattage, a key requirement of the ATX 3.1 specification that ensures your system remains stable even during sudden, intense load changes in games or creative applications.

1200W of Clean Power: A Single-Rail Design

With a total output of 1200 watts, the NZXT C1200 is more than capable of powering high-end systems. Its design is centered around a single, powerful +12V rail capable of delivering 100A. A single-rail design is inherently more flexible and reliable than a multi-rail design, as it allows your components to draw power as needed without worrying about the load on a specific rail.

This immense power capacity means you can confidently run a flagship CPU, such as an Intel Core i9 or AMD Ryzen 9, paired with a top-tier GPU, multiple storage drives, and a full suite of peripherals without coming close to its limits. This power headroom is not only for maximum performance today but also provides ample capacity for future upgrades.

80 PLUS Gold and Beyond: Unmatched Efficiency

The NZXT C1200 boasts an 80 PLUS Gold certification, a testament to its exceptional efficiency. This certification guarantees that the PSU will operate at a minimum of 87% efficiency under a 20% load, 90% at 50% load, and 87% at full load.

In practice, the NZXT C1200 often exceeds these minimum requirements, providing a higher level of efficiency that translates to several tangible benefits. More of the electricity drawn from the wall is converted into usable power for your components, which reduces wasted energy as heat. This not only lowers your electricity bill over time but also contributes to a cooler internal case temperature, benefiting all of your components. The lower heat generation also directly contributes to quieter operation.

The Heart of Reliability: 100% Japanese Capacitors

Beneath the sleek exterior of the NZXT C1200 lies a commitment to quality. The internal circuitry is populated with 100% premium Japanese capacitors. These components are widely regarded as the industry gold standard for their durability, stability, and high-temperature resistance.

They are crucial for maintaining consistent voltage and minimal ripple noise—the small fluctuations in voltage that can degrade component performance and longevity. The use of these top-tier capacitors ensures that the NZXT C1200 delivers an incredibly clean and stable power signal, providing a reliable and long-lasting foundation for your build, backed by an impressive 10-year warranty.

The Silence of Performance: Fluid Dynamic Bearing Fan

A powerful PC doesn’t have to be a loud one. The NZXT C1200 is equipped with a 135mm Fluid Dynamic Bearing (FDB) fan, a key feature for both performance and acoustics.

FDB fans use a thin layer of fluid as a lubricant, which significantly reduces friction and wear compared to traditional sleeve or ball bearings. This results in an exceptionally quiet fan that also has a longer lifespan.

The PSU’s fan features a Zero RPM mode, which means the fan won’t spin at all when the power supply is under 50% load. This allows for completely silent operation during light tasks like web Browse, video streaming, or word processing.

When the load increases during intense gaming or rendering, the fan intelligently ramps up to provide the necessary cooling, but it does so while maintaining a low noise profile, ensuring your PC remains as quiet as possible.

Complete Protection Suite: Safeguarding Your System

The NZXT C1200 is designed with a comprehensive suite of safety protections to guard your valuable components against any electrical irregularities. This includes:

• OVP (Over Voltage Protection): Protects against a sudden surge in voltage on any rail.
• UVP (Under Voltage Protection): Shuts down the PSU if the voltage drops below a safe level.
• OPP (Over Power Protection): Prevents damage from a total power draw that exceeds the PSU’s capacity.
• SCP (Short Circuit Protection): Instantly shuts down the unit if a short circuit is detected.
• OCP (Over Current Protection): Guards against excessive current on any individual rail.
• OTP (Over Temperature Protection): Shuts off the PSU if it gets too hot, preventing component damage.These multiple layers of protection provide peace of mind, knowing that your system is shielded from common electrical faults.

The Unparalleled Benefits of Owning an NZXT C1200

Beyond the technical specifications, the true value of the NZXT C1200 lies in the real-world benefits it brings to your PC building and user experience.

A Future-Proof Investment:

In an era of rapidly evolving hardware, the NZXT C1200 stands out as a wise long-term investment. Its ATX 3.1 compliance and native 12V-2×6 connector mean you won’t need to worry about compatibility or reliability issues with future generations of graphics cards.

As the industry continues its transition away from older connector standards, owning a native ATX 3.1 PSU like the NZXT C1200 ensures you are ready for the next wave of high-performance components, eliminating the need for a costly power supply upgrade down the line.

Effortless Builds and Superior Aesthetics:

Cable management is often cited as one of the most frustrating parts of building a PC, but the fully modular design of the NZXT C1200 transforms this task into a breeze. You only plug in the cables you need for your specific components, leaving out the clutter of unnecessary wires.

This leads to a much cleaner and more organized internal layout, which not only looks fantastic but also improves airflow and cooling performance throughout your case. The included braided cables are durable and easy to route, further contributing to a professional-looking finish.

Maximum Performance, Minimum Noise:

The combination of the Zero RPM fan mode and the FDB fan allows the NZXT C1200 to deliver its immense power with minimal noise. For most day-to-day computing tasks, the fan will not spin at all, creating a completely silent environment.

This is a significant advantage for home offices, studios, or anyone who values a quiet workspace. When you start a demanding game or a heavy creative workload, the fan kicks in seamlessly, but its high-quality bearing and intelligent curve keep the noise level low. This provides the best of both worlds: peak performance when you need it and silent operation when you don’t.

Energy Savings and Reduced Heat:

The high efficiency of the 80 PLUS Gold certification means your system is not only more environmentally friendly but also more economical to run. By minimizing the amount of power wasted as heat, the NZXT C1200 directly contributes to a lower electricity bill over the life of the unit.

This saved energy also means less heat is expelled into your case, which in turn reduces the workload on your case fans and CPU cooler, leading to an overall cooler and more stable system.

Peace of Mind with a Decade-Long Warranty:

The reliability of a power supply is paramount, and NZXT stands behind the NZXT C1200 with an industry-leading 10-year warranty. This extensive coverage period reflects the company’s confidence in the build quality, component selection, and overall durability of the unit.

It is a long-term commitment that provides builders with the ultimate peace of mind, knowing that their investment is protected for years to come. The robust build, premium Japanese capacitors, and comprehensive safety protections all work in concert to ensure the NZXT C1200 will be a dependable heart for your PC for a very long time.

Conclusion

The NZXT C1200 Gold ATX 3.1 power supply is a masterclass in modern PSU design. It marries raw power with exceptional efficiency, quiet operation, and the latest safety standards to create a product that is not only powerful but also incredibly reliable.

By embracing the ATX 3.1 standard and including a native 12V-2×6 connector, it addresses the most pressing concerns of today’s PC builders and provides a truly future-proof solution.

Whether you are an enthusiast building a high-end gaming rig, a professional workstation user, or someone looking for the most stable and reliable foundation for your components, the NZXT C1200 is an investment that pays dividends in performance, peace of mind, and longevity.

It is the intelligent choice for anyone looking to build a powerful and dependable PC that will last for years to come.
