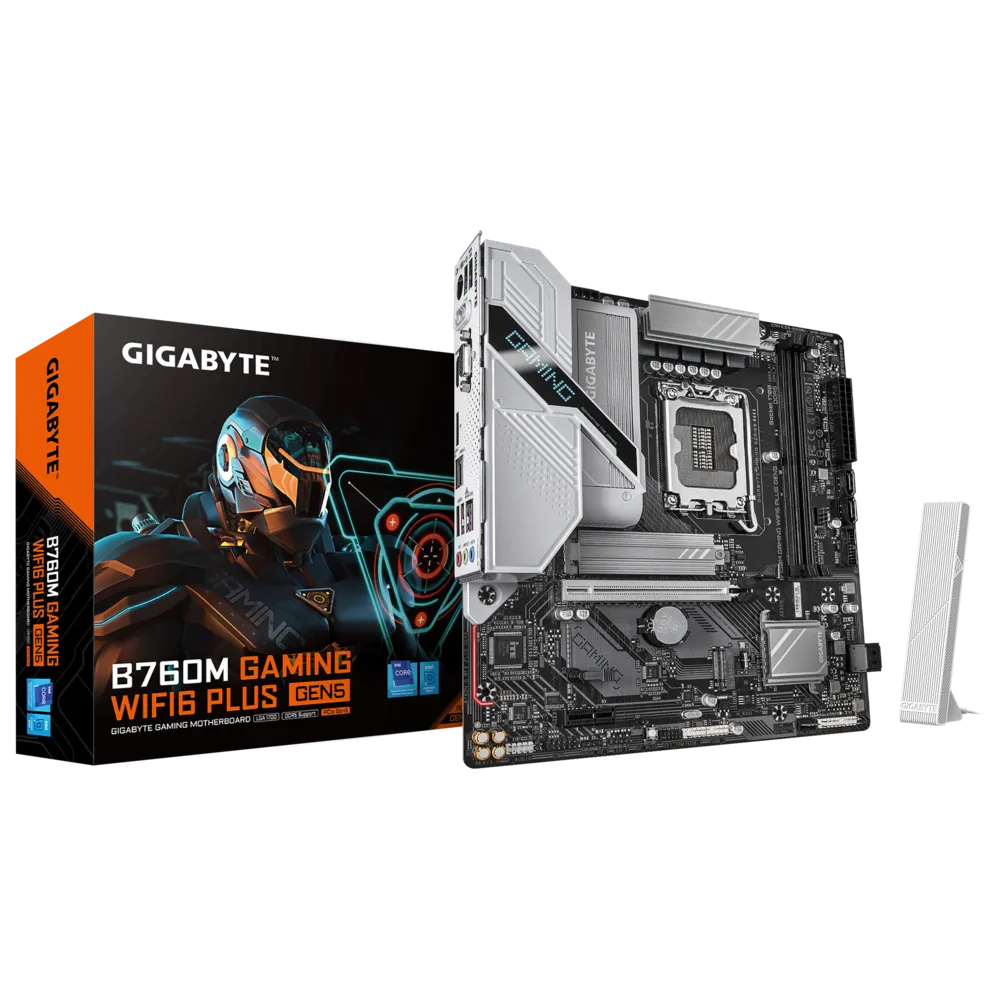

Command Your PC with the GIGABYTE B760M GAMING WIFI6 PLUS GEN5 Motherboard

In the ever-evolving world of PC technology, the motherboard stands as the crucial foundation upon which a high-performance system is built. For gamers and enthusiasts who demand the perfect blend of cutting-edge features, robust reliability, and a clean, compact design, the GIGABYTE B760M GAMING WIFI6 PLUS GEN5 motherboard is the definitive answer. This micro-ATX powerhouse is meticulously engineered to provide an exceptional platform for the latest Intel processors and next-generation components, all while delivering a streamlined and hassle-free building experience.

This comprehensive product description will take you on a deep dive into the technical details and extensive benefits of the B760M GAMING WIFI6 motherboard. We will explore its advanced power delivery, state-of-the-art connectivity, intelligent thermal management, and a host of user-friendly innovations that make it an outstanding choice for any builder.

Unleash Peak Performance: Built for the Modern CPU

The GIGABYTE B760M GAMING WIFI6 PLUS GEN5 is a motherboard built to unlock the full potential of Intel’s latest and greatest processors. It is designed around the Intel B760 chipset and supports the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors. This broad compatibility gives you the flexibility to choose a CPU that perfectly fits your performance needs and budget, from a powerful gaming chip to a multi-core powerhouse.

Hybrid 6+2+1 Phases Digital VRM Solution: At the heart of the board’s performance is its uncompromising power delivery system. A Hybrid 6+2+1 phases digital VRM solution, featuring low RDS(on) MOSFETs, is engineered to provide a stable, clean, and efficient power supply to the CPU. This robust design is crucial for maintaining high clock speeds and preventing thermal throttling, ensuring your processor performs at its maximum potential during intense gaming sessions or demanding creative workloads. The use of solid pin power connectors further enhances this stability by providing a more reliable and durable connection, reducing signal degradation and improving overall power efficiency.

Next-Generation DDR5 Memory Support: The motherboard embraces the future of memory technology with support for dual-channel DDR5. The two DIMM slots are designed to handle up to 128GB of system memory, with support for Extreme Memory Profile (XMP) technology, allowing for memory speeds of up to 7800 MT/s and beyond. This enables you to take full advantage of the increased bandwidth and lower latency of DDR5, resulting in faster application loading, smoother multitasking, and a significant performance boost in memory-intensive games.

PCIe 5.0 and High-Speed Storage: The B760M GAMING WIFI6 is truly future-proofed with a full-sized PCIe 5.0 x16 slot. This cutting-edge slot doubles the bandwidth of the previous generation, providing a massive 32 GT/s data transfer rate per lane. This is essential for the latest high-performance graphics cards and future storage devices, ensuring that your system won’t be a bottleneck for years to come. The PCIe 5.0 slot is further fortified with GIGABYTE’s Ultra Durable™ SMD Armor, a one-piece stainless-steel shielding design that provides exceptional durability and retention force, protecting the slot from the strain of heavy GPUs.

For storage, the board features two PCIe 4.0 x4 M.2 connectors, which provide lightning-fast data transfer speeds for NVMe SSDs. This allows you to build a system with a super-fast primary boot drive and a secondary high-speed storage drive for your game library or video projects, dramatically reducing load times and improving overall system responsiveness. Additionally, four SATA 6Gb/s connectors provide ample room for traditional hard drives or SATA SSDs, with support for RAID 0, 1, 5, and 10 configurations.

Superior Thermal and Cooling Design

High performance requires effective cooling, and the GIGABYTE B760M GAMING WIFI6 is designed to keep your system running cool and quiet.

Advanced Thermal Design: The board features a fully covered thermal design, including massive VRM heatsinks with an integrated molding process. These durable heatsinks provide a large surface area for superior heat dissipation, ensuring that the power delivery components remain cool and stable, even during prolonged, intense usage. This prevents thermal throttling and contributes to the longevity and reliability of your components.

Smart Fan 6: GIGABYTE’s innovative Smart Fan 6 technology offers comprehensive and precise cooling control. The board is equipped with multiple temperature sensors and several hybrid fan headers that can automatically detect whether a fan or a water-cooling pump is connected. This technology also includes the FAN STOP feature, which allows fans to completely stop spinning when the system is under light load, providing a silent computing experience. The user-friendly software allows for highly customizable fan curves with up to seven control points, enabling you to fine-tune your cooling performance to perfection.

Technical Details and Specifications

To provide a complete picture of its capabilities, here are the detailed technical specifications of the GIGABYTE B760M GAMING WIFI6 PLUS GEN5:

• CPU Socket: LGA 1700
• Chipset: Intel® B760 Express Chipset
• Form Factor: Micro-ATX ($24.4\text{cm}\times 22.5\text{cm}$)
• Memory:
  • 2 x DDR5 DIMM sockets
  • Supports up to 128 GB of system memory
  • Dual-channel memory architecture
  • Support for DDR5 7800(OC)/7600(OC)/7400(OC)/… up to 4400 MT/s
  • Support for Extreme Memory Profile (XMP) modules
• Expansion Slots:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (with EZ-Latch and Ultra Durable™ SMD Armor)
  • 1 x PCI Express x1 slot, supporting PCIe 3.0
• Storage Interface:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
• LAN: Realtek® 2.5GbE LAN chip
• Wireless Communication:
  • Wi-Fi 6 (802.11ax)
  • BLUETOOTH 5.3
  • WIFI EZ-Plug and WIFI Compass technology
• Rear Panel I/O:
  • 1 x USB Type-C® port (USB 3.2 Gen 1)
  • 3 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0 ports
  • 1 x D-Sub port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x RJ-45 port
  • 3 x Audio jacks
  • 2 x Antenna connectors
• Internal I/O:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 2 x addressable LED strip headers
  • 1 x RGB LED strip header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0 headers
• BIOS: 1 x 128 Mbit flash with GIGABYTE Q-Flash Plus and other exclusive features.

Cutting-Edge Connectivity and DIY-Friendly Design

The GIGABYTE B760M GAMING WIFI6 is designed not only for performance but also for a seamless and intuitive user experience, both during and after the build process.

Lightning-Fast Wireless Networking: The inclusion of Wi-Fi 6 (802.11ax) and Bluetooth 5.3 is a standout feature. Wi-Fi 6 provides gigabit wireless performance, ensuring smooth video streaming and a low-latency, stable gaming experience with speeds up to 2.4Gbps. The onboard Bluetooth 5.3 offers a 4X greater range and faster transmission compared to previous versions. GIGABYTE has also added two clever features to enhance wireless connectivity: the WIFI EZ-Plug for quick and easy antenna installation and WIFI Compass, which automatically detects the best antenna position for the strongest signal. The Realtek 2.5GbE LAN chip provides an incredibly fast and reliable wired connection, perfect for online gaming and streaming.

Effortless Building Experience: GIGABYTE’s DIY-friendly features make building with this motherboard a pleasure. The Q-Flash Plus technology allows you to update the BIOS without installing the CPU, memory, or graphics card, a feature that can save you a lot of time and frustration. The PCIe EZ-Latch simplifies the process of removing a graphics card with a single click, eliminating the need to wrestle with a finicky latch in a tight case. The GIGABYTE Control Center (GCC) is a unified software platform that lets you manage your motherboard’s functions, including fan curves, RGB lighting, and performance settings, from a single, intuitive interface.

High-Fidelity Audio: The board features a high-end audio subsystem with an audio noise guard that separates the sensitive analog audio components from potential noise pollution. This, combined with high-quality audio capacitors, provides an immersive and clear audio experience, whether you’re listening to the subtle sound cues in a game or enjoying your favorite music.

Benefits of Use: Why Choose the B760M GAMING WIFI6?

Choosing the GIGABYTE B760M GAMING WIFI6 PLUS GEN5 is a decision that offers a compelling blend of performance, value, and convenience. Here are some of the key benefits:

1. Future-Ready Platform: With support for PCIe 5.0 and DDR5 memory, this motherboard provides a robust and future-proof foundation for your PC. Your system will be ready for the next generation of GPUs and other high-speed components, ensuring your investment remains relevant for years to come.
2. Superior Connectivity: The inclusion of Wi-Fi 6, Bluetooth 5.3, and 2.5GbE LAN provides versatile, high-speed networking options, whether you prefer a wired or wireless setup.
3. Powerful and Stable Performance: The Hybrid 6+2+1 phases digital VRM solution ensures that your CPU receives a stable and reliable power supply, allowing it to perform at its best without throttling.
4. Exceptional Thermal Management: Smart Fan 6 and the advanced VRM heatsink design keep your system cool and quiet, striking a perfect balance between performance and acoustics.
5. DIY-Friendly Innovations: Features like Q-Flash Plus and PCIe EZ-Latch simplify the building process, making it an ideal choice for both experienced builders and those embarking on their first PC build. The user-friendly software ecosystem also provides powerful, easy-to-use control over your system.

Conclusion

The GIGABYTE B760M GAMING WIFI6 PLUS GEN5 is a masterful blend of power, innovation, and value. It takes the best of modern technology—including PCIe 5.0 and DDR5 support—and combines it with a compact micro-ATX form factor and a host of user-friendly features. Whether you are building a new gaming rig or upgrading an existing one, this motherboard provides a stable, high-performance, and future-ready platform that will not only meet your needs today but also for the technology of tomorrow. With the B760M GAMING WIFI6, you’re not just building a PC; you’re building a command center for your digital life.
